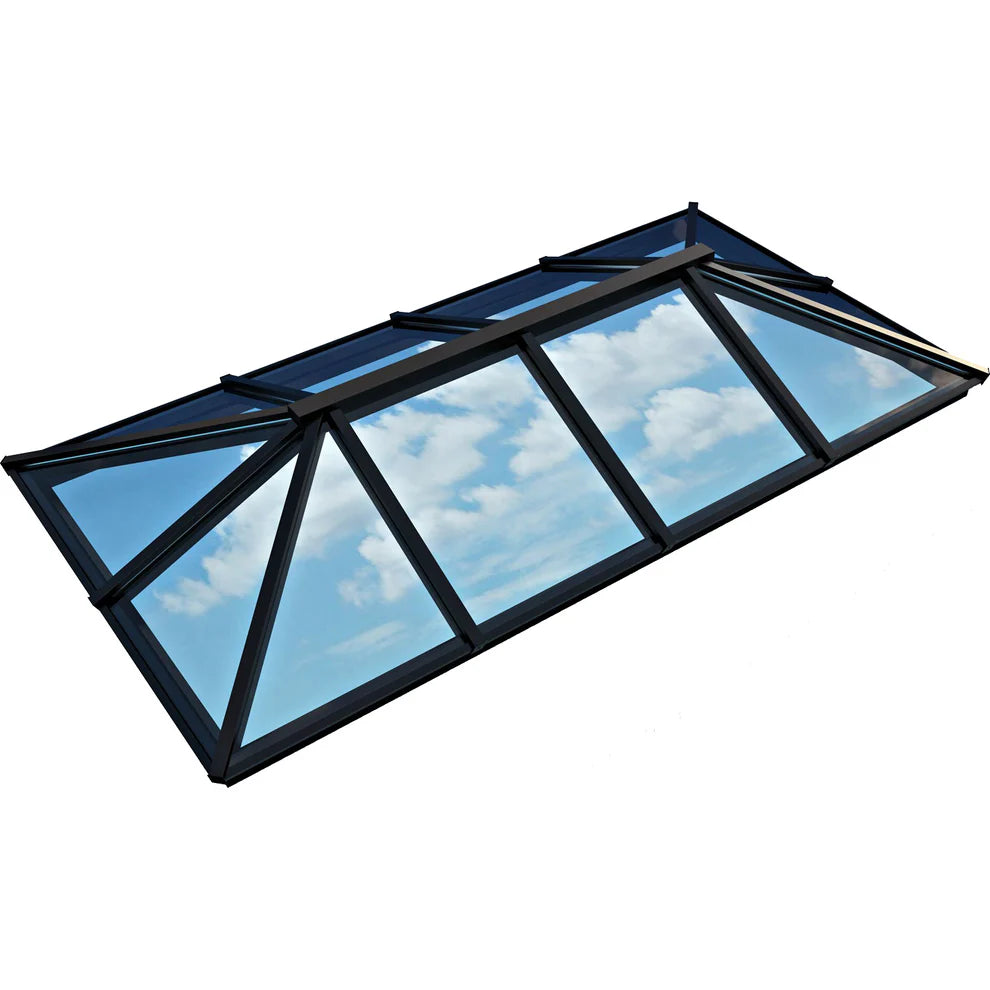

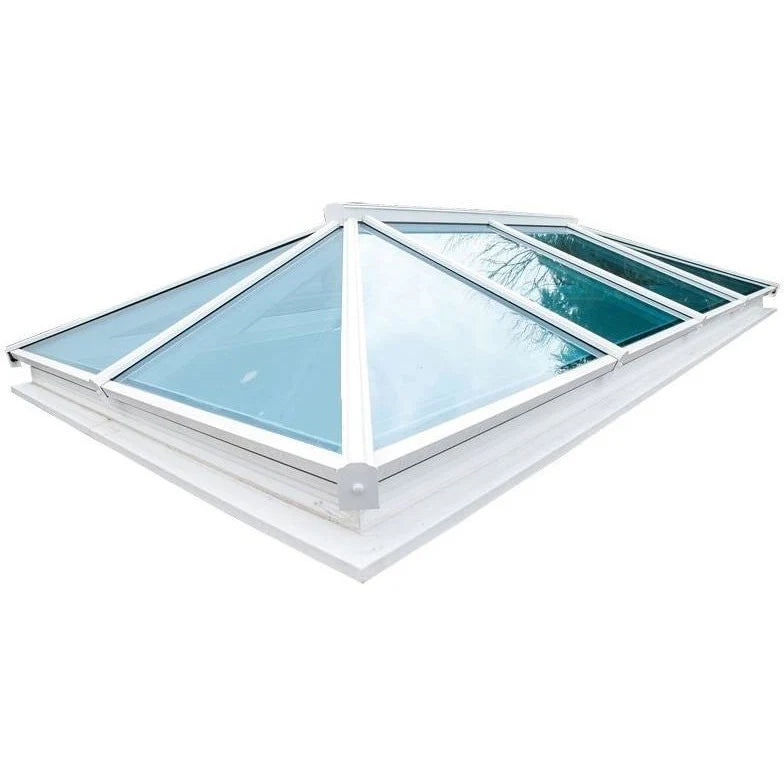

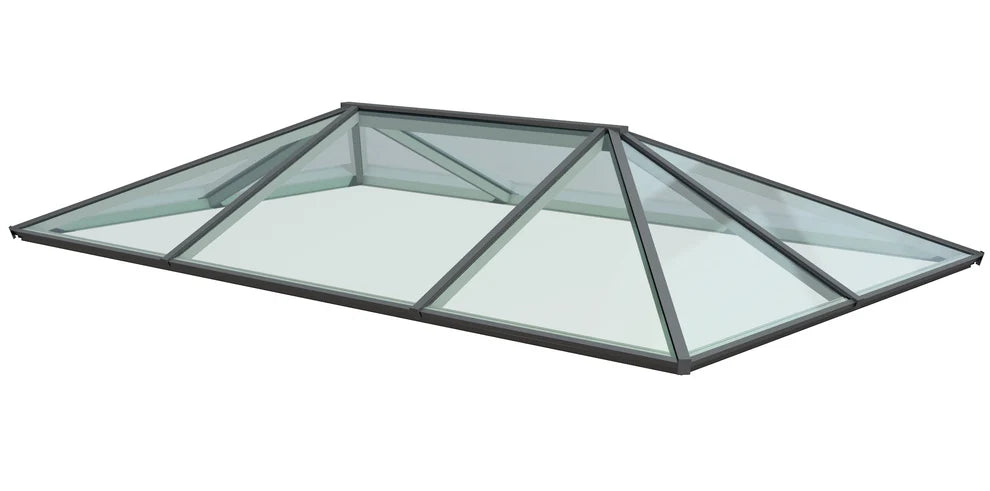

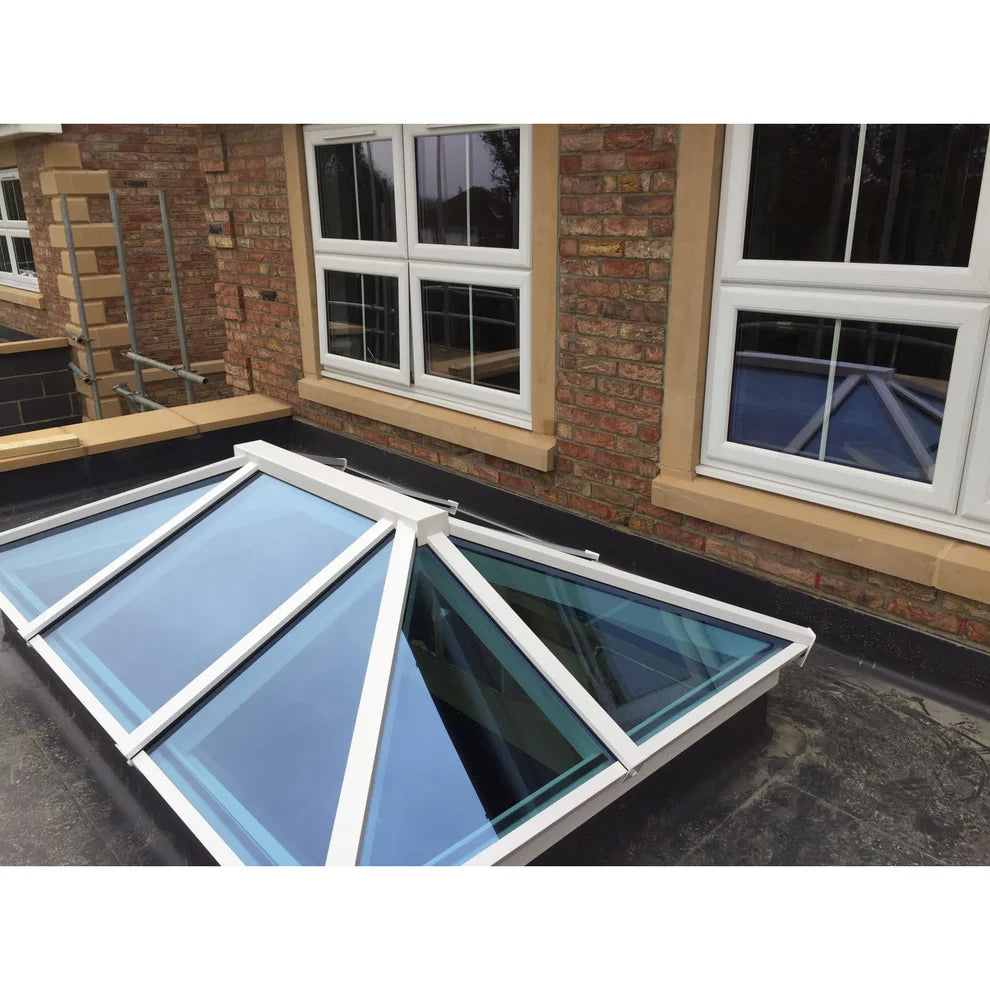

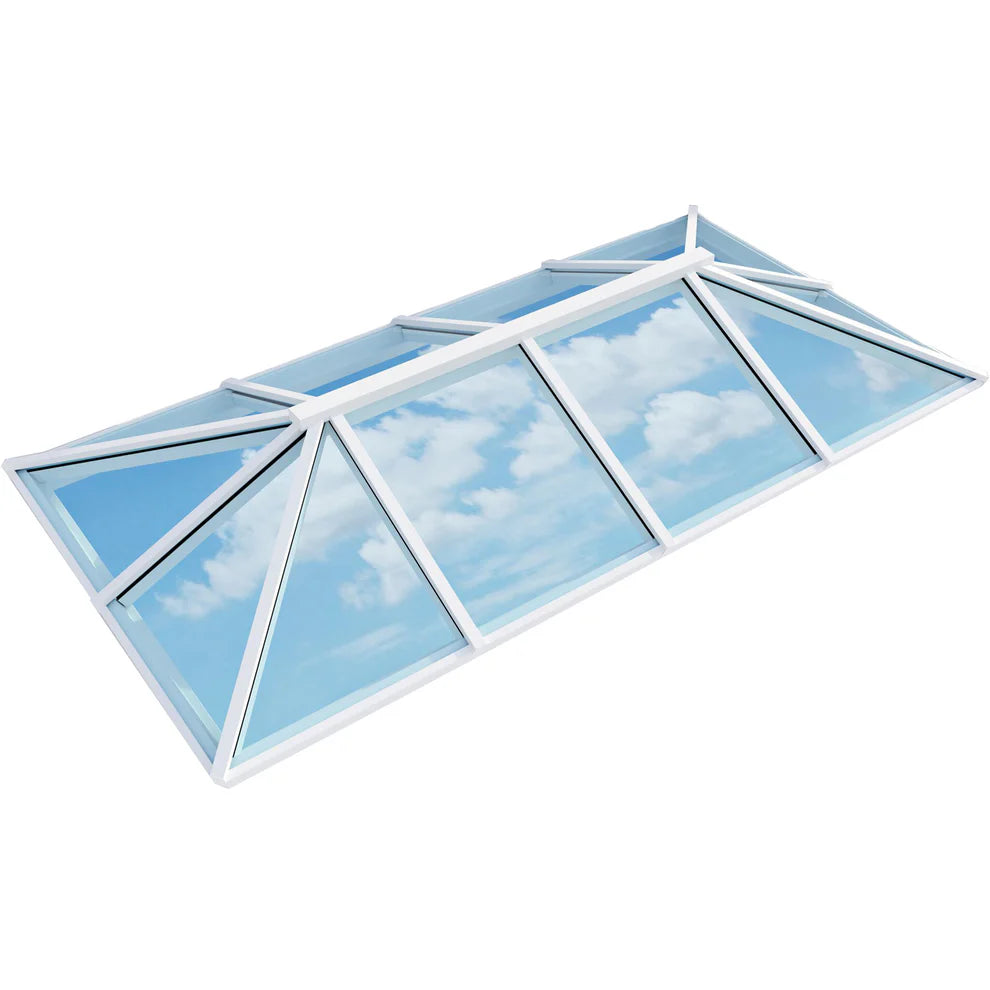

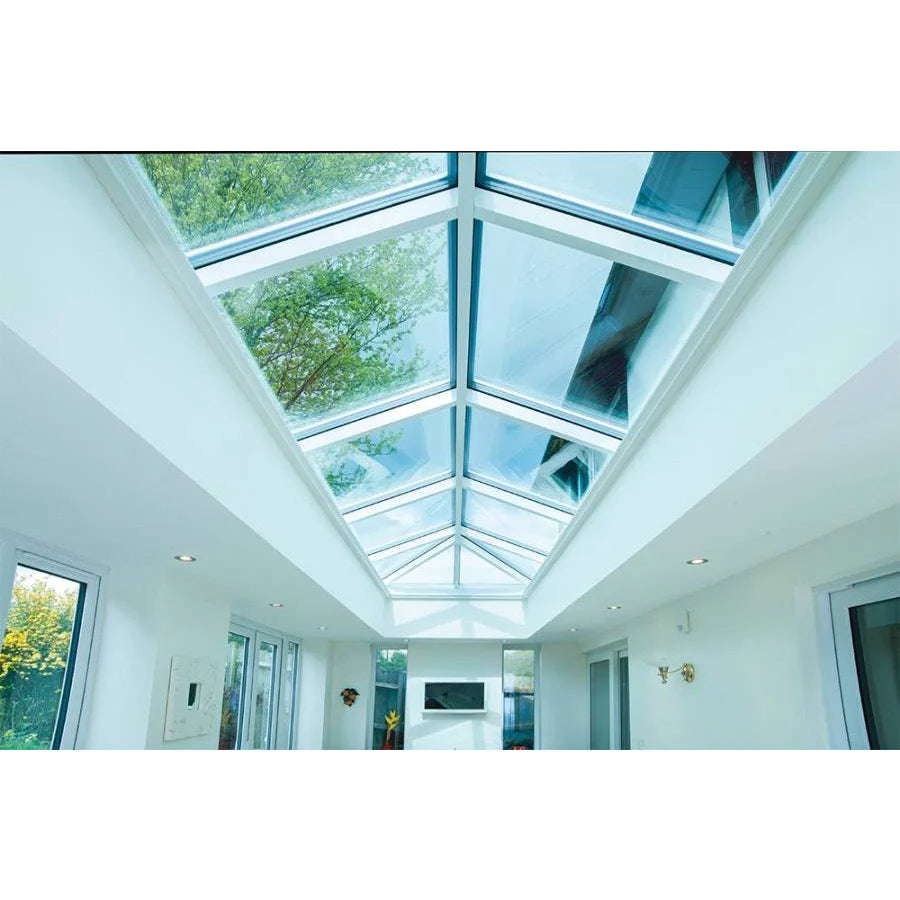

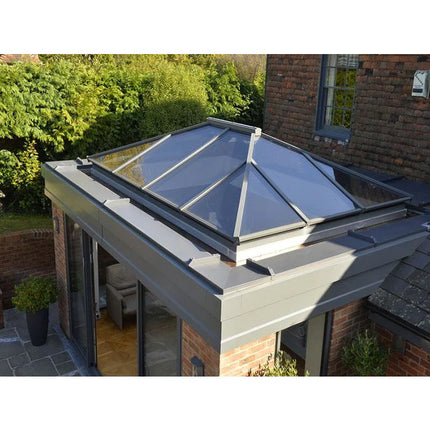

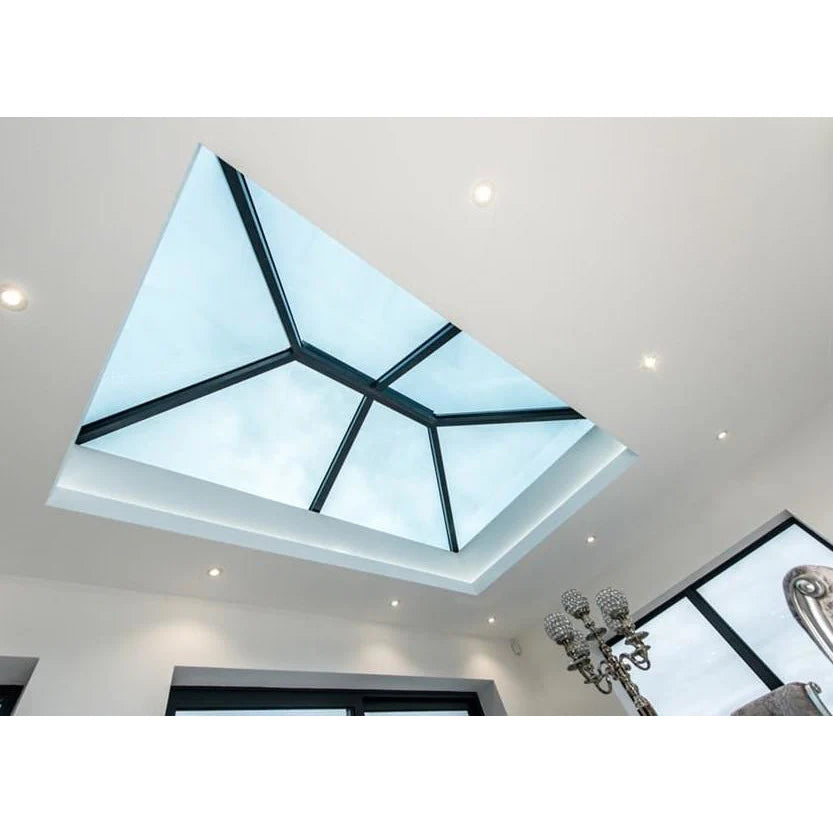

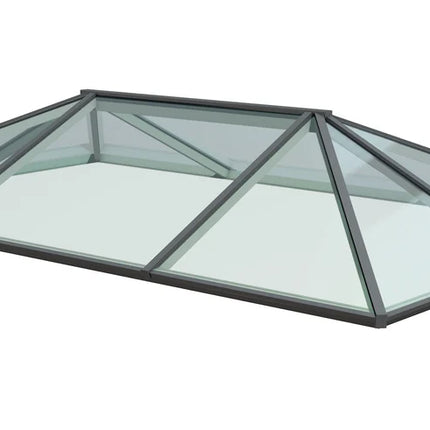

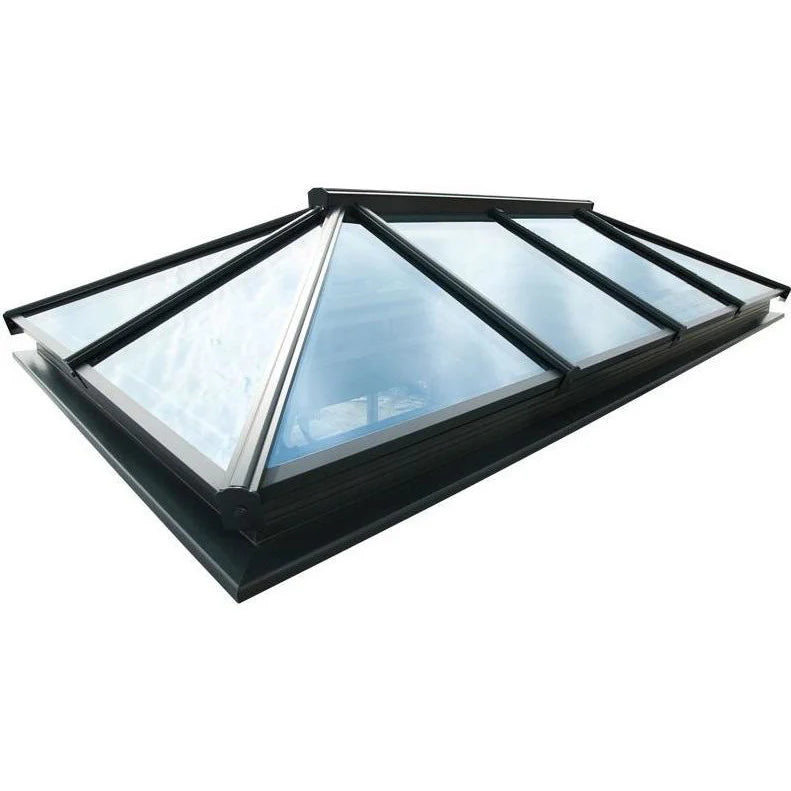

At Atlas, we set the standard for excellence in lantern roof design. Our traditional roof lanterns are another popular choice for both modern and classic homes. They use additional rafters, but are still made with the same stylish, sleek, minimalist profile as our contemporary range. Available in four stock sizes, hundreds of bespoke made-to-measure options, and a choice of colours, they’re the perfect way to open up your rooms.
Key Specifications
- As standard, our glass keeps heat out, insulates, blocks 91% of harmful UV rays, reduces fading, and stays cleaner for longer with built-in self-cleaning technology
- Tested up to a uniformly distributed load of 3.5 KN/m2 for strong performance
- All double-glazed units incorporate toughened safety glass, manufactured to the highest British and European Standards, accredited to BS EN 1279 parts 2 & 3 and BS EN 12150
-
Industry-leading ridge and rafter U Values – double glazing rafter 1.5 W/m2K as standard and rafter U Value as low as 0.9 W/m2K with triple glazing
- Hundreds of bespoke made-to-measure options
- 38% slimmer internal hip than alternatives
- 60% slimmer internal ridge than alternatives
- Over 50% lower external bulk
- Stock lantern pitch of 25 degrees with variable alternatives available on request, with certain styles
- Thermal break prevents cold from getting to the inside of the rafter
- Roof proportionately correct with ridge and hips all 40mm
- Contemporary roof lanterns available in stock sizes ranging between 1000 x 1500 to 1500 x 3000
- Traditional roof lanterns available in stock sizes ranging from 1000 x 2000 to 2000 x 4000
- Square roof lanterns available in stock sizes between 1000 x 1000 to 2000 x 2000
- Please note, we offer bespoke sizes for all our roof lanterns, up to a maximum of 5m x 10m.
Available Configurations
The Atlas Roof Lantern offers a range of options to suit your specific requirements. From different sizes and finishes to various glazing options, you can create a roof lantern that perfectly complements a projects unique style and architecture.
- Stock RAL Colours
- Dual colour available at no extra cost when selecting two stock colours
- Available in contemporary, traditional, square or circular style
- Bespoke RAL and BS colours available
- All Glass types are self-cleaning
